Magnetic North
PRODUCTS
PON switch QS001
Key words:
Classification:
Share:
Product Characteristics
-
-
Multiple standards
Support10Base-T and 100Base-TX
-
-
-
Strong compatibility
CompatibleIEEE 802.3/802.3u standard
-
-
-
Data Transfer
Support half duplex: back pressure flow control
-
-
-
flow control method
Full duplex support: IEEE 802.3x flow control
-
-
-
Interface rich
5 10/100M Ethernet ports
-
Product Application
|
Project |
Indicators |
|
network standard |
IEEE802.3/802.3u standard |
|
Transmission rate |
10/100Mbit/s |
|
Number of interfaces |
5 |
|
Interface form |
GX12-6 Aviation Head |
|
Indicator light |
Power Indication Red Light* 1/net port indicates green light * 5 |
|
Input voltage |
DC 12V±10% |
|
Input current |
I min= 1A |
|
Working temperature |
-40℃ -85 ℃ |
|
Product size |
LongX width X height :137X50X35.5(mm) |
Product Parameters

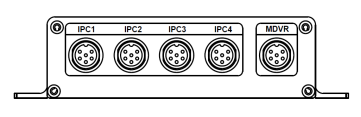

Interface Description
|
QS001 Port |
Docking port |
|
MDVR |
Vehicle-mounted intelligent terminal B10-LAN port |
|
IPC1-4 |
IPC Camera |
Aviation Port
|
Aviation Head PIN |
Port Definition |
|
1 |
RX- |
|
2 |
RX |
|
3 |
12V |
|
4 |
TX |
|
5 |
TX- |
|
6 |
GND |
