USB charger QB008
Key words:
Classification:
Share:
Product Characteristics
-
-
Easy installation
Embedded installation, small footprint, easy to install
-
-
-
Protection
With rebound cover door protection, reliable dust and splash water
-
-
-
Exquisite design
The appearance is flat and simple, and the panel is indicated by a charging indicator light.
-
-
-
Interface rich
Support a variety of fast charging protocols such as QC3.0, suitable for most mobile phones, tablet charging
-
-
-
Safety Design
With over-current protection, over-voltage protection, output short-circuit protection, reverse connection protection
-
-
-
Scene application
Suitable for installing bus side wall, air-conditioning duct, seat, protection platform, etc.
-
Product Application
|
Project |
Parameter Description |
||||
|
Product Name |
USB Car Charger |
||||
|
Product Model |
QB008 |
||||
|
Power Interface |
7021-6.3-11 |
||||
|
Operating voltage |
DC24V（ 16V-32V wide voltage design) |
||||
|
Output power |
When single-port output , According to the maximum power output of the fast charging protocol:
|
||||
|
Quick Charge Agreement |
support apple mobile phone fast charge agreement: Apple-2.4A support samsung mobile phone fast charge agreement: Samsung-5V2A Samsung-AFC_9V support huawei mobile phone fast charge agreement: Huawei-FCP DCP-1.5A support qualcomm fast charge protocol: QC2.0_9V-12V QC3.0 |
||||
|
Support mobile phone brand |
Apple sumsumg G Huawei oppo vivo等 |
||||
|
Product size |
38*42mm |
||||
|
Working temperature |
-30°C ~ 80°C |
||||
|
Product Weight |
≤200g |
Product Parameters

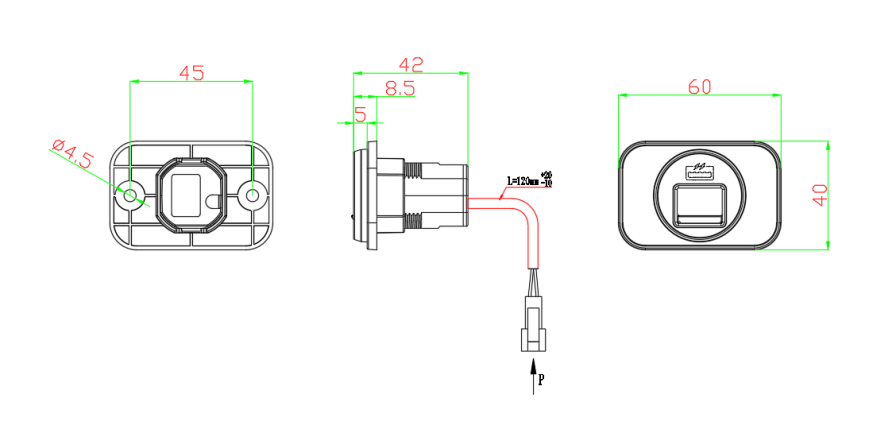

Nut installation method
Single hole panel installation method

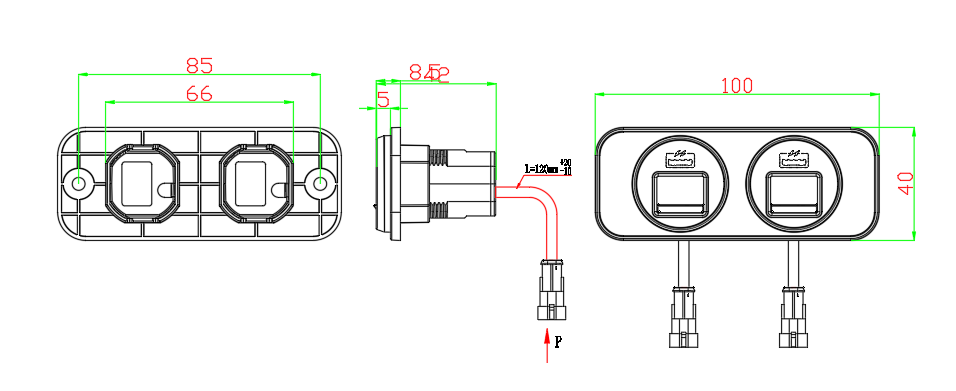

Installation method of double-hole panel
